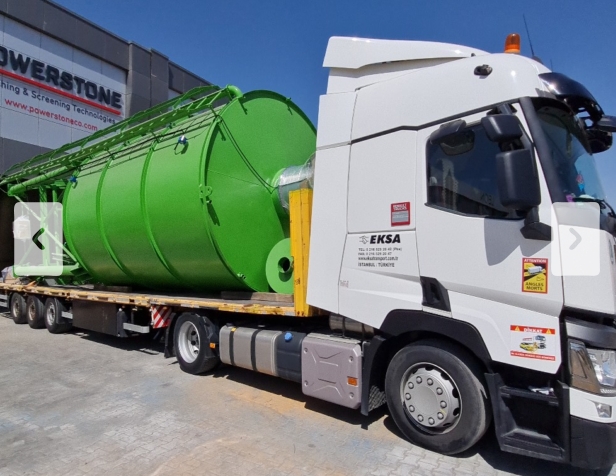

Fixed Welded Silo - 50 TONS
| SILO CAPACITY | 50 Ton, 38m3 |
| SILO HEIGHT | 12000 mm |
| SILO DIAMETER | Ø 2400 mm |
| NUMBER OF SILO LEGS | 4 Pieces |
| SILO OUTLET DIAMETER | 300mm |
| SILO WEIGHT | 5700kg |
| SILO LEG MATERIAL | 168x5mm Steel Pipe |
| CONICAL SHEET MATERIAL | ST - 37 -> 5 mm |
| SILO BODY MATERIAL | ST – 37 –> 4 mm |
| SILO TOP COVER MATERIAL | ST - 37 –> 4 mm |
| LEG INTERMEDIATE BRACES | NPL 60 |
| LEG BASE PLATE | 15 mm Sheet |
| NUMBER OF RINGS | 3 Pieces |
| INTER-RING CONNECTION | NPU 60 |
| FILLING PIPE | 4” Pipe |
| PAINT | It will be painted with one coat of primer followed by two coats of finish paint in the color determined by the customer. Industrial paint with 60-80 microns thickness.e |
