STANDART DONANIM :

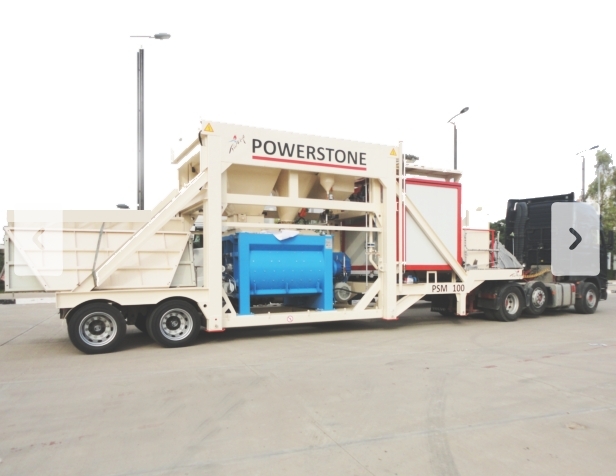

> The facility is offered with two mobile chassis with a storage capacity of 60-75-90-115-120-160 cbm aggregates as 3 bunkers or 4 bunkers.
> Caps are available for dosing pneumatically operated aggregates.
> There is a 4-point suspended aggregates weighing system.
> The operator station is integrated into the plant chassis as an independent unit at the top to control the plant. It is highly insulated and air-conditioned for the ambient temperature of the facility.
> There is a main electrical control panel and an automatic control and operation unit.
> HP computer set, UPS 1000, printer, table and chair are available.
> There is a belt conveyor system for aggregate feeding.
> Cement and water group scales are available.
> Pneumatic installation with air compressor is available.
> There is a dust removal cover for the mixer.
> Twinshaft mixer SICOMA 3000/2000 or PRO-MIX 3000/2000 produced in Italy is used. It is driven by the Cobra gearbox made in Italy.
> The Mixing Tower is fully wired, installed and installed as a telescopic system.
>This feature is unique for fast installation and uptime, thanks to the experience of POWERSTONE's engineering team as an innovative and practical solution.
| MODEL NAME AND CODE | PSM-110 Graff | PSM-120 Cemal |
| CAPACITY M3/HOUR / AGGREGATE HOPPER TYPE | 90-110 m3/h / Mobile Chassis | 90-110 m3/h / Mobile Chassis |
| NUMBER OF PODS AND CAPACITY | 3x30m3 = 90m3 | 4x30 = 120m3 |
| WEIGHING BELT CONVEYOR DIMENSIONS | 10500 x 1000mm | 14000 x 1000mm |
| WEIGHING BUNKER | 3m3 | 4m3 |
| MIXER FEEDING BELT | 22000 x 1000mm | 22000 x 1000mm |
| TAPE BREAK SENSOR | Standard | Standard |
| WEIGHING MEASUREMENT GROUP | 1 PC | 1 PC |
| CEMENT CAPACITY | 1000Kg | 1000Kg |
| WATER CAPACITY | 800Lt | 800Lt |
| ADDITIVE CAPACITY/AMOUNT | 20Kg | 20Kg |
| MIXER TYPE | Twin Shaft | Twin Shaft |
| BRAND NAME / ORIGIN | POWERMIX – Turkish | POWERMIX – Turkish |
| DRY FILLING CAPACITY | 3000/2000Lt | 3000/2000Lt |
| FRESH CONCRETE CAPACITY | 2400Lt | 2400Lt |
| COMPRESSED CONCRETE CAPACITY | 2000Lt | 2000Lt |
| ENGINE AND GEARBOX | 2x37kW | 2x37kW |
| AIR COMPRESSOR | 1 PC | 1 PC |
| CAPACITY AND OPERATING PRESSURE | 1150Lt – 8 Bar | 1150Lt – 8 Bar |
| CONTROL CABINET | Internal | Internal |
| COMMAND AND CONTROL PC-PLC | Semi and Fully Automatic | Semi and Fully Automatic |
| ELECTRICAL COMPONENTS | SCHNEIDER / SİEMENS / EİTON / WEİDMÜLLER Brand | SCHNEIDER / SİEMENS / EİTON / WEİDMÜLLER Brand |
| PLC SYSTEM | SCHNEIDER / Delta / SİEMENS / MİTSUBİSHİ Marka | SCHNEIDER / Delta / SİEMENS / MİTSUBİSHİ Marka |
| PC/UPS/LASER OR DOT-MATRIX PRINTER | HP | HP |
| AUTOMATION SYSTEM | 1 piece (Turkish, French, Russian, Arabic, English) | 1 piece (Turkish, French, Russian, Arabic, English) |
| SOFTWARE | Our own software ( Beton Net ) | Our own software ( Beton Net ) |
| CEMENT UNIT | Optional | Optional |
| CEMENT SILO CAPACITY/TYPE | 100 Ton Welded / Bolted | 100 Ton Welded / Bolted |
| UPPER SILO FILTER | Standard | Standard |
| PRESSURE RELIEF VALVE | 2 ( Max – Min ) | 2 ( Max – Min ) |
| LEVEL INDICATORS | Standard | Standard |
| ACTUATOR AND BUTTERFLY VALVE | Standard | Standard |
| LIQUEFACTION | Jet Nozzles | Jet Nozzles |
| CEMENT SCREWS FEEDER | Ø 273 x 10220 mm2 | Ø 273 x 10220 mm2 |
| AIR CONDITIONING | Optional | Optional |
