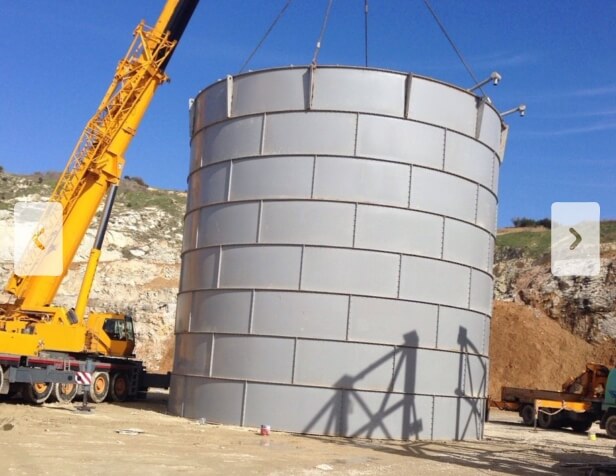

Fixed Bolted Silo - 2000 TONS
| SILO CAPACITY | 2000 Ton, 1530m3 |
| SILO HEIGHT | 22000 mm |
| SILO DIAMETER | Ø 12400 mm |
| NUMBER OF SILO LEGS | 16 Pieces |
| SILO OUTLET DIAMETER | 400mm |
| SILO WEIGHT | 100000kg |
| SILO LEG MATERIAL | 323x12mm Steel Pipe |
| CONICAL SHEET MATERIAL | ST - 37 -> 10 mm |
| SILO BODY MATERIAL | ST – 37 –> 10 - 8 – 6 – 5 mm |
| SILO TOP COVER MATERIAL | ST - 37 - 5 mm |
| LEG INTERMEDIATE BRACES | NPL 100 |
| LEG BASE PLATE | 20 mm Sheet |
| NUMBER OF RINGS | 10 Pieces (each ring consists of 4 parts) |
| FILLING PIPE | 4” Pipe |
| PAINT | It will be painted with one coat of primer followed by two coats of finish paint in the color determined by the customer. Industrial paint with 60-80 microns thickness. |
