Fixed Bolted Silo - 200 TON
| SILO CAPACITY | 200 TON, 153 m³ |
| SILO HEIGHT | 18360 mm |
| SILO DIAMETER | Ø 4100 mm |
| NUMBER OF SILO LEGS | 4 Pieces |
| SILO OUTLET DIAMETER | 300mm |
| SILO WEIGHT | 16000kg |
| SILO LEG MATERIAL | 273x6mm Steel Pipe |
| CONICAL SHEET MATERIAL | ST - 37 -> 8 mm |
| SILO BODY MATERIAL | ST – 37 –> 5 veya 6 mm |
| SILO TOP COVER MATERIAL | ST - 37 - 4 mm |
| LEG INTERMEDIATE BRACES | NPL 100 |
| LEG BASE PLATE | 20 mm Sheet |

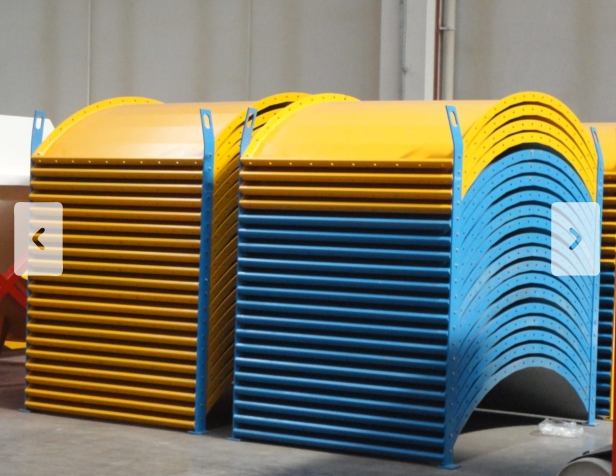

| NUMBER OF RINGS | 8 Pieces (each ring consists of 4 parts) |
| FILLING PIPE | 4” Pipe |
| PAINT | It will be painted with one coat of primer followed by two coats of finish paint in the color determined by the customer. Industrial paint with 60-80 microns thickness. |
